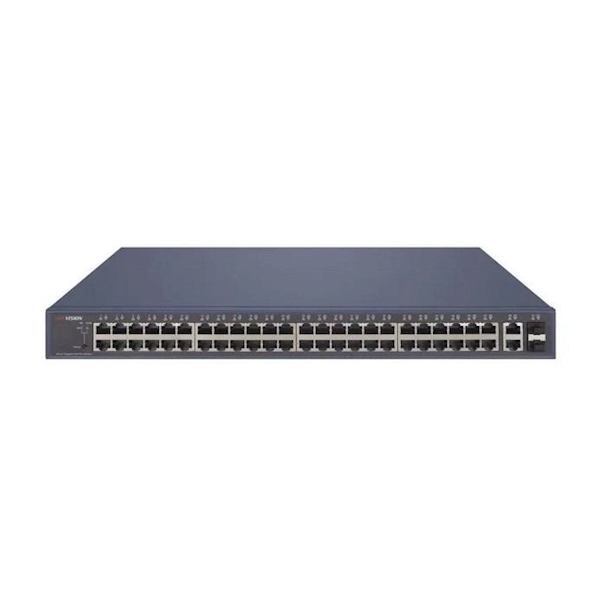

DS-3E1552P-SI, Smart Managed Gigabit PoE SI Series

Prijs per stuk

Inloggen

Aantal

Belangrijke kenmerken

Hikvision, 48 poorts POE switch, Smart managed, Gigabit.

Network Parameters

Ports 48 × 1 Gigabit PoE port,2 × 1 Gigabit fiber optical port,2 × 1 Gigabit RJ45 port
Port Type RJ45 port,full duplex,MDIMDI-X adaptive
Standard IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3z
Forwarding Mode Store-and-forward switching
Working Mode Standard mode (default),Extend mode
MAC Address Table 16 K
Switching Capacity 104 Gbps
Packet Forwarding Rate 77.376 Mpps
Internal Cache12 Mbits

PoE Power Supply

Dialing Function

Software Function
Device Maintenance Support remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization.
Port Configuration Support port rate configuration, flow control, and ports enabling.
PoE Configuration
PoE watchdog: Ports 1 to 48 auto detect and restart the cameras that do not respond.

PoE enabling: supported
Port Rate-Limiting Rate-limiting for ingress and egress ports
Storm Control Storm control of unknown unicast, multicast, and broadcast
Port Mirroring Supported
Link Aggregation Support static link aggregation.
Port Isolation Ports in an isolation group cannot communicate with each other.
Qo SWRR and SP scheduling and port priority
VLAN Supported
STPSTP and RSTP
SNMPSNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces
LLDPLLDP supported for port configuration, global configuration, and neighbor discovery
DHCPDHCP supported

General

Shell Metal material
Net Weight 4.35 kg (9.59 lb)
Gross Weight 4.5 kg (9.92 lb)
Dimensions (W × H × D)440.00 mm × 44.00 mm × 323.80 mm (17.32'' × 1.73'' × 12.71'')
Operating Temperature 0 °C to 45 °C (32 °F to 113 °F)
Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity 5% to 95% (no condensation)
Relative Humidity 5% to 95% (no condensation)
Power Supply 220 VAC, 50/60 Hz
Max. Power Consumption 500 W
Power Consumption In Idle 30 W

Approval

EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
