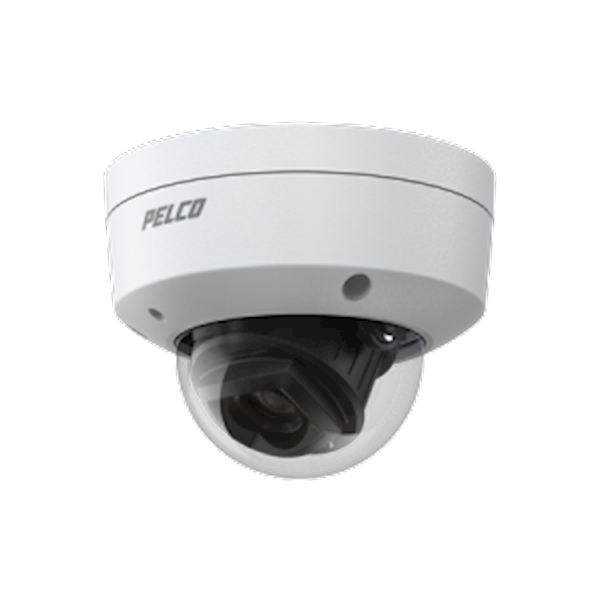

IMV529-1ERS, Sarix Value Mini Dome 5MP, Varifocal 3-9mm
Belangrijke kenmerken

  • True Wide Dynamic Range
  • 30 fps @ 1080p, 20 FPS @ 5 MP
  • Built-in IR illumination tot 30 M
  • Remote zoom and focus varifocal lens
  • H.265 and H.264 encoding met Pelco Smart Compressie
  • IP66 en IK10 (vandaalproof)
  • Ingebouwde MicroSD / SDHC / SDXC Card Slot
  • Ingebouwde microfoon
Pelco Sarix Value Mini Dome 5MP, Varifocal 3-9mm
Beeld Sensor
  • 1/2.9" Progressive CMOS (IMV229-1ERS); 1/2.7" Progressive CMOS
  • (IMV529-1ERS)
  • Maximum Resolution 1920x1080 (2MP) (IMV229-1ERS); 2560x1920 (5MP) (IMV529-1ERS)
Lens Type
  • Motorized, Vari-focal, Remote Focus
  • Focal Length f = 3.4 ~ 9.4 mm
  • Aperture F1.4 ~ F2.8
  • ris Type Fixed iris
  • Field of View IMV229-1ERS
  • 93° ~ 32° (Horizontal)
  • 50° ~ 18° (Vertical)
  • 110° ~ 37° (Diagonal)
  • IMV529-1ERS
  • 30° ~ 90° (Horizontal)
  • 23° ~ 65° (Vertical)
  • 38° ~ 115°(Diagonal)
  • Shutter Time 1/5 sec. to 1/32,000 sec.
  • Wide Dynamic Range Up to 120 dB. 100dB per IEC62676-5
  • Day/Night Yes with removable IR cut filter
  • R Illumination Built-in IR illuminators, effective up to 30 meters with Adaptive IR
technologie
  • Minimum Illumination 0.07 lux Color (IMV229-1ERS); 0.2 lux Color (IMV529-1ERS)
  • Pan Range 353°
  • Tilt Range 75°
  • Rotation Range 350°
  • C5038S-A | 06/08/21 3
  • Sarix Value® Series IR Environmental Mini Dome Cameras (IMV229-1ERS,
  • IMV529-1ERS)
Product Specificaties
  • Pan/Tilt/Zoom Functionalities Digital PTZ: 48x digital zoom
  • Storage Seamless Recording to MicroSD/SDHC/SDXC card and recording to
  • network-attached storage (NAS)
  • Built-in Installation Aids Focus and Zoom can be configured by the web client.
Video
  • Video Compression H.265, H.264, MJPEG
  • Maximum Frame Rate 30 fps @ 1920x1080 (IMV229-1ERS); 20 fps @ 2560x1920 (IMV529-1ERS)
  • Maximum Streams 3 video streams (Up to 8 configurable profiles)
  • S/N Ratio 50 dB (IMV229-1ERS); 61 dB (IMV529-1ERS)
  • Video Streaming Adjustable resolution, quality and bit rate control, Pelco Smart Compression
  • Image Settings General settings: video title and time stamp overlay, video orientation (flip,
  • mirror, rotation), day/night settings;
  • Illuminators: illuminators, Adaptive IR;
  • Image settings: white balance, image adjustment (brightness, contrast,
  • saturation, sharpness, gamma curve), defog, 3DNR;
  • Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain
  • control), AE speed adjustment, WDR; Privacy mask; Scheduled profile
Audio
  • Audio Capability One-way Audio
  • Audio Compression G.711, G.726
  • Audio Interface Built-in microphone
  • Effective Range 5 meters
Network
  • Users Live viewing for up to 10 clients
  • Security Access list, digest authentication, HTTPS, IEEE 802.1x, password
  • protection, signed firmware, user access log, user account management
  • 5038S-A | 06/08/21 4
  • Sarix Value® Series IR Environmental Mini Dome Cameras (IMV229-1ERS,
  • IMV529-1ERS)
camera solutions
  • Protocols 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP,
  • HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP),
  • RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
  • Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
  • ONVIF Profile G, S, T supported, specification available at www.onvif.org
Cybersecurity
Sarix Value Series cameras implement several cybersecurity measures to protect device access as well
as data transport including credential setup for device access, authentication, HTTPs using TLS1.2, AES
encryption with 256 bit keys, digital signature for firmware upload, denial of access to shell, 802.1X,
camera firewall with whitelist/blacklist address support, 2048 RSA key pairs, X.509 v3 digital certificates
with SHA256 signature hash.

Alarm and Event

  • Event Trigger Camera tampering detection
  • audio detection, manual trigger
  • motiondetection
  • periodical trigger
  • recording notification
system boot
  • Event Action Event notification via audio clip (IMV229-1ERS only), email, HTTP, FTP
  • NAS server, SD card, push notification file upload via email
General
  • Connectors RJ-45 cable connector f or 10/100Mpbs Network/PoE connection
  • LED Indicator System power and status indicator
  • Power Input IEEE 802.3af PoE Class 3
  • Power Consumption Max. 12.95 W/9 W (IR on/off)
  • Dimensions ø 133.7 x 103.8 mm
  • Weight 819 g
  • Body Construction Powder coated aluminum (RAL 9003), lower dome bubble polycarbonate
  • Operating Temperature Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F)
  • Working Temperature:-30°C ~ 60°C (-22°F ~ 140°F)
  • Humidity 90%
  • C5038S-A | 06/08/21 5
  • Sarix Value® Series IR Environmental Mini Dome Cameras (IMV229-1ERS,
  • IMV529-1ERS)
System Requirements
  • Operating System Microsoft Windows 10/8/7
  • Web Browser Chrome, Firefox, Edge
  • Other Players VLC
Included Accessories
  • Others Quick Start Guide, alignment sticker, screw pack, cable gland
Models
  • Resolution Model Number Lens Description
  • 2 MP IMV229-1ERS 3 ~ 9 mm Sarix Value Environmental IR Mini Dome
  • 5 MP IMV529-1ERS 3 ~ 9 mm Sarix Value Environmental IR Mini Dome
