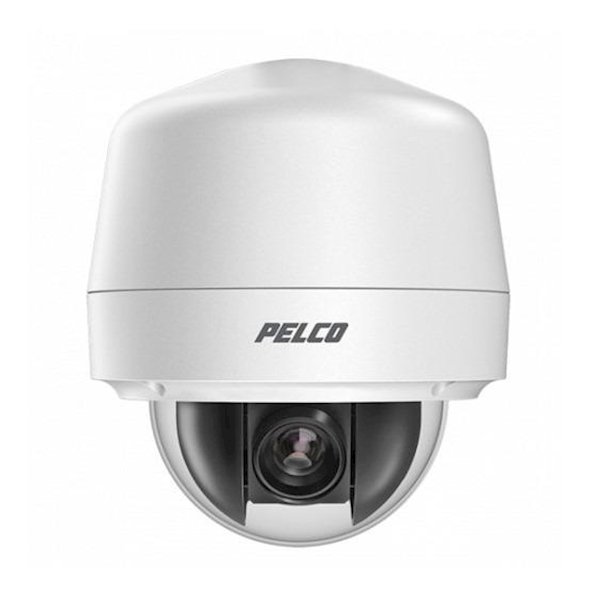

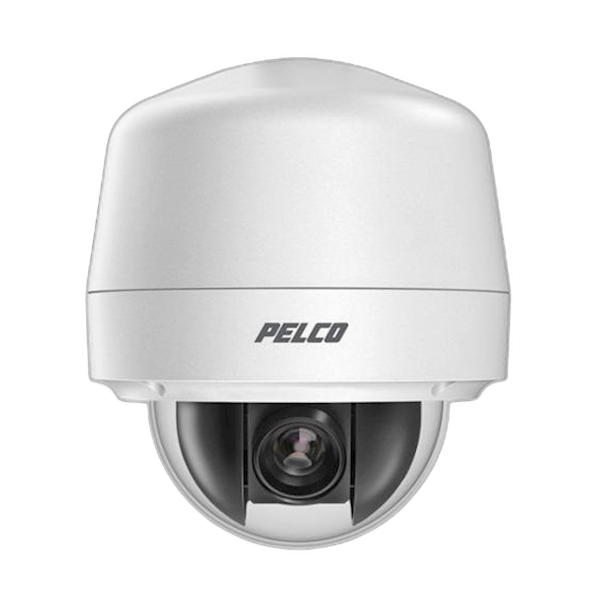

Belangrijkste kenmerken
Camera
Sensor Type 1/2.8-inch CMOS Sensor
Optical Zoom 30X
Digital Zoom 12X
Maximum Resolution 1920 x 1080
Lens f/1.6 ~ f/4.4, focal length 4.5 mm (wide) ~ 135 mm (tele)
Angle of View
Horizontal 59.8° (wide) ~ 2.34° (tele)
Vertical 40.5° (wide) ~ 1.48° (tele)
Diagonal 67.8° (wide) ~ 2.77° (tele)
Aspect Ratio 16:9
Light Sensitivity
Color (33 ms) 0.1 lux
Color (125 ms) 0.025 lux
Mono (33 ms) 0.05 lux
Mono (125 ms) 0.01 lux
Note: Sensitivity in lux for 90% reflectance, f/1.6 (wide angle), 45 dB gain at 30 IRE (30% of
signal level)
Day/Night Capabilities Yes
Shutter Range 1/4 ~ 1/30,000 sec
Signal-to-Noise Ratio >50 dB
IR Cut Filter Yes
True Wide Dynamic Range Up to 120 dB Max; 100 dB per IEC 62676-5
Iris Control Auto Iris with Manual Override
Backlight Compensation Yes
Automatic Gain Control Yes
Active Noise Filtering 3D Noise Filtering
Digital Image Stabilization (DIS) Yes
Scanning Progressive Scanning System
Software Features
256 presets
16 tours
4 patterns
Field of View scan
±0.1° preset accuracy
Multilingual menus (English, Spanish, Portuguese, Italian, German, French, Russian, Turkish, Arabic, Simplified Chinese, and Korean)
Password protection
16 window blanks, configurable in size
“Auto Flip” feature rotates camera 180° at bottom of tilt travel
Configurable park with actions
Proportional pan/tilt continually decreases pan/tilt speeds in proportion to depth of zoom
Video
Video Encoding H.264 High, Main or H.265 Main, MJPEG
Video Streams Up to 3 simultaneous streams; the second and third stream is variable based on the setup of the primary stream
Frame Rate Up to 60, 50, 30, 25, 20, 16.67, 15, 12.5, 10, 7.5, 5, 3, 2,1 (depending on the coding, resolution, and stream configuration)
Network
Supported Protocols TCP/IP, UDP/IP (Unicast, Multicast IGMP), ARP, ICMP, UPnP, DNS,
DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS,
SSH, TLS/SSL, SMTP, FTP, and 802.1x (EAP)
Users
Unicast Up to 5 simultaneous users depending on resolution settings (2 guaranteed
streams)
Multicast Unlimited users H.264 or H.265
Security Access Password protected. Admin password required for initial login.
Software Interface Web browser view and setup
Pelco System Integration VideoXpert
Endura 2.0 (or later), limited support
Digital Sentry 7.3 (or later), limited support
Open API Pelco API or ONVIF Profile G, Profile S, and Profile T
Mobile Application Integrated to Pelco Mobile App
Cybersecurity
Pelco’s Spectra Pro Series 2 cameras implement several cybersecurity measures to protect device
access as well as data transport including credential setup for device access, authentication, Https using
TLS1.2, AES encryption with 256 bit keys, denial of access to shell, 802.1X, camera firewall with
whitelist/blacklist address support, digital certificate.
Mechanical
Variable Speed 0.1° to 100°/sec (manual pan speed)
Preset Accuracy Pan ±0.1°, Tilt ±0.05°
Vertical Tilt +1° to –90° degrees
Maximum Pan Speed Up to 400° per second
Maximum Tilt Speed Up to 200° per second
Manual Pan/Tilt Speeds
Pan 0.1° to 100°/sec manual operation
Tilt 0.1° to 50°/sec manual operation
Preset Speeds
Pan 400°/sec
Tilt 200°/sec
Electricial
Ports RJ-45 connector for 100Base-TX
Auto MDI/MDI-X
Autonegotiate/manual setting
Cabling Type Cat5e or better for 100Base-TX
Input Voltage 20 to 32 VAC; 24 VAC normal
42 to 53 VDC; 48 VDC normal
Input Power
24 VAC 0.95A (19VA) Indoor and Environmental without heaters. No pan or tilt.
1.40A (27VA) Indoor and Environmental without heaters. Pan and tilt active.
2.00A (40VA) Environmental with heaters. Pan and tilt active.
48 VDC 0.40A (16W) Indoor and Environmental without heaters. No pan or tilt.
0.77A (21W) Indoor and Environmental without heaters. Pan and tilt active.
1.00A (35W) Environmental with heaters. Pan and tilt active.
802.3bt
(Environmental)
802.3at (Indoor)
0.40A (16W) Indoor and Environmental without heaters. No pan or tilt.
0.50A (21W) Indoor and Environmental without heaters. Pan and tilt active.
1.00A (35W) Environmental with heaters. Pan and tilt active.
Certifications
CE (Class A)
FCC (Class A)
ICES-003 (Class A)
UL/cUL Listed
UL/IEC/EN 60950-1, 60950-22, 62368-1
EN 50121-4
IEC/EN 62262 IK10
Environmental Models:
- IEC/EN 60529 (IP66, IP67)
- Type 4X
KC
NOM
RCM
EAC*
BIS
IEC 62676-5 Data specifications and image quality performance for camera devices
ONVIF Profile S, Profile G, and Profile T Conformant
