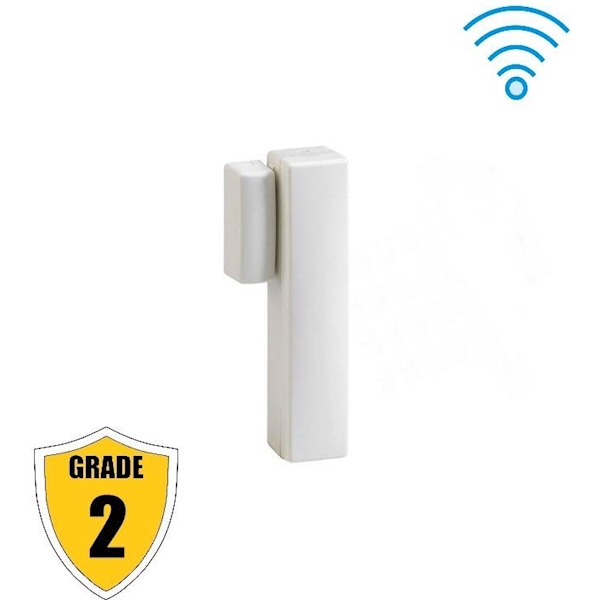

Wit draadloos mageneetcontact
Specificaties
Detection
Distance between sensor and magnet: 22mm on wood/16mm on steel
Tamper Cover and wall mounted
External detection input No
External tamper input No
Power
Battery type one 3V CR123 A lithium battery (supplied)
Battery life > 5 years typical
Low Battery signaling between 2.5V and 2.7V (Sent to the panel)
Radio
RF frequency 868MHz
RF Type Narrow Band, FM
RF Range ,Unobstructed 2000m
Mechanics
Color White
Dimensions (L x H x D) 22mm x 100mm x 23mm
Weight with battery 55g
Operating temperature -10° to 55°C
Storage temperature -20° to +70°C
Compatibility
Domonial panel firmware from version Ixx onwards
Le Sucre™ All versions
Galaxy Dimension With C079-2 wireless receiver
Galaxy Flex With C079-2 wireless receiver
Approvals EN 50131-2-6 and EN 50131-1 Grade 2, Environment Class II
