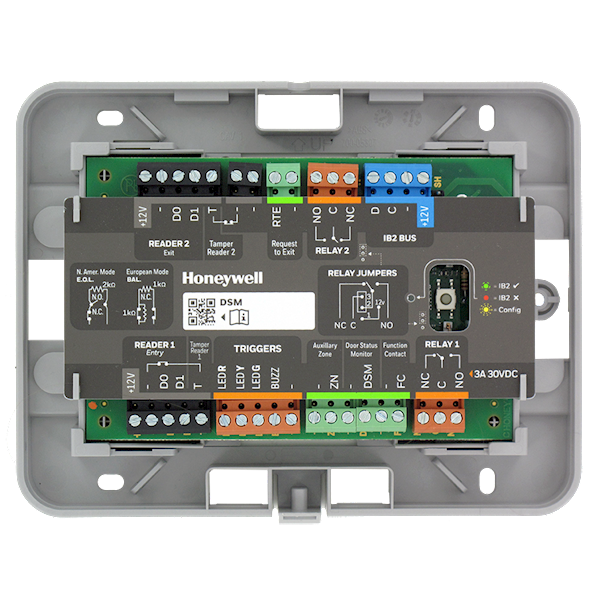

MAXPRO Intrusion 1 Door Control Module (1 door, 2 readers)
BOARD POWER
- Input voltage 13.8 VDC nominal (10–14.5 VDC)
- Current, idle 60 mA
- Current, max. 185 mA (relays active)
ACCESS CONTROL
- Reader power 13.7 VDC; 1 A
- Wiegand data 5 VDC
- Card types
- Wiegand:
- - HID cards: 26, 32, 34, 35, and 48 bit
- - Mifare cards: Classic 32 bit and Desfire 56 bit; reading
CSN only
- - EM4102 ASK 125 kHz; up to 40 bits
- Note: card type is set on site level (all DCMs in the site).
RELAYS
- Door Strike/Lock
- 12–30 VDC; 3 A max.; dedicated for door lock (magnetic
- lock or door strike).
- Current-limited to 1.5 A with 12 VDC on NC/NO pin.
- TRIGGER OUTPUTS (X 4)
- LED R, LED Y, LED G, BUZZ 50 mA (switched negative) each
ZONES (INPUTS)
- RTE (request to exit) Default triple-balanced
- DSM (door status monitor) Default triple-balanced
- ENVIRONMENTAL
- Operating temperature -10 to +50 °C / Indoor use only
- Humidity Max. 93% RH non-condensing
- Ingress and impact protection EN 60529:1992+A2:2013: IP42 / EN 62262:2002: IK06
PHYSICAL
- Dimensions (W x D x H)
- With enclosure: 18 cm x 14 cm x 4 cm
- Without enclosure: 13 cm x 8.6 cm x 2.6 cm
- As shipped: 21.5 cm x 15.0 cm x 4.5 cm
- Weight
- With enclosure: 356 g
- Without enclosure: 120 g
- As shipped: 453 g
OTHER
- Ancillary Control Equipment
- (ACE) Type B
