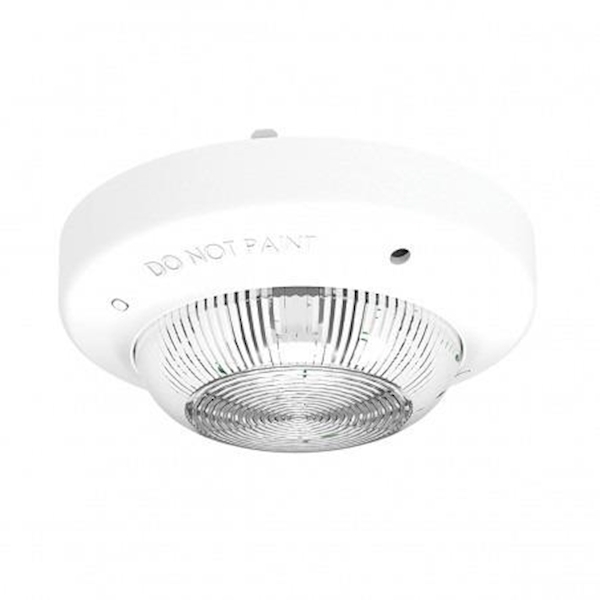

Addressable Remote Indicator - White case, clear lens
Specificaties
Bestelcodes
CHQ-ARI(WHT) - Wit
Bedrijfsspanning
17 – 41 VDC
Stroomverbruik
Ruststroom: 280 μA (typisch), max. 300 μA
Lus stroom (bij polling): 22 mA ±20%
Alarmstroom: 4,5 mA (typisch), max. 5,4 mA
Temperatuurbereik
Bedrijfstemperatuur: -10 °C tot +50 °C
Opslagtemperatuur: -30 °C tot +60 °C
Maximale Vochtigheid
95% RH - niet-condenserend (bij 40 °C)
Kleur / Behuizingsmateriaal
Ivoor of Wit / ABS
Lenskleur
Transparant (helder)
Afmetingen en Gewicht
Gewicht: 88 g
Diameter: 100 mm
Hoogte: 38 mm (46 mm met basis)
Montagecentra (mm) 48 ~ 74
Goedkeuringen
VdS (G206053)
