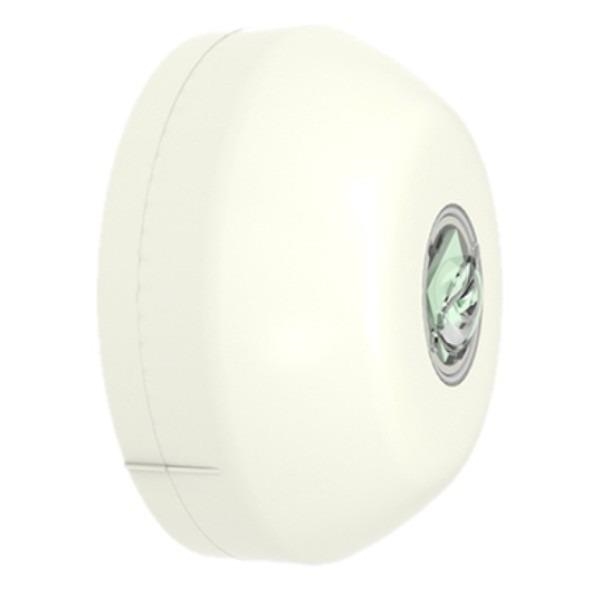

Wall Beacon - Ivory case, white LEDs
Specificaties
Bestelcode
CHQ-WB Ivoor
Werkspanning
17 – 41 VDC
Ruststroom (typisch)
250 μA
Werktemperatuur
-10 °C tot + 50 °C
Opslagtemperatuur
-30 °C tot + 70 °C
Maximale luchtvochtigheid
95% RH - Niet-condensvormend (bij 40 °C)
Kleur / Behuizingsmateriaal
Ivoor / ABS
Lensmateriaal
PC (polycarbonaat)
Gewicht
120gr.
Diameter (mm)
Ø100 mm
Hoogte (mm)
41 mm
Montageafstand (bevestigingsgaten)
48 ~ 74 mm
IP-classificatie:
IP21
IP33 (wanneer gebruikt in combinatie met CHQ-WPK Weatherproofing Kit)
Compatibele montageboxen:
YBN-R/3, YBN-R/3(SCI), YBO-BS (basis met sirene)
