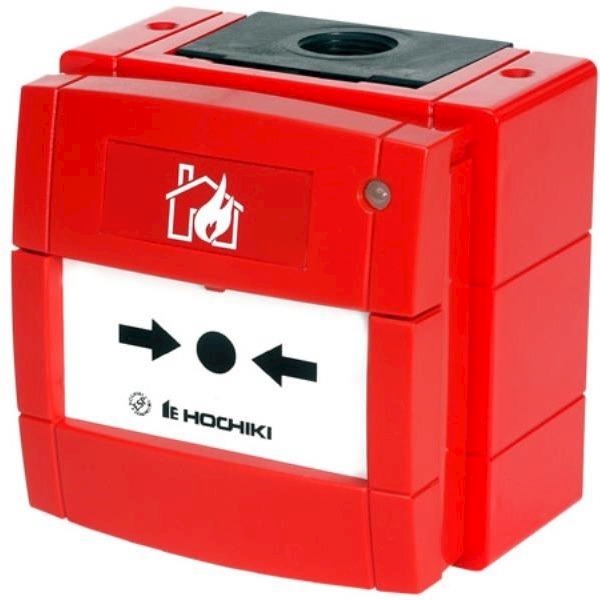

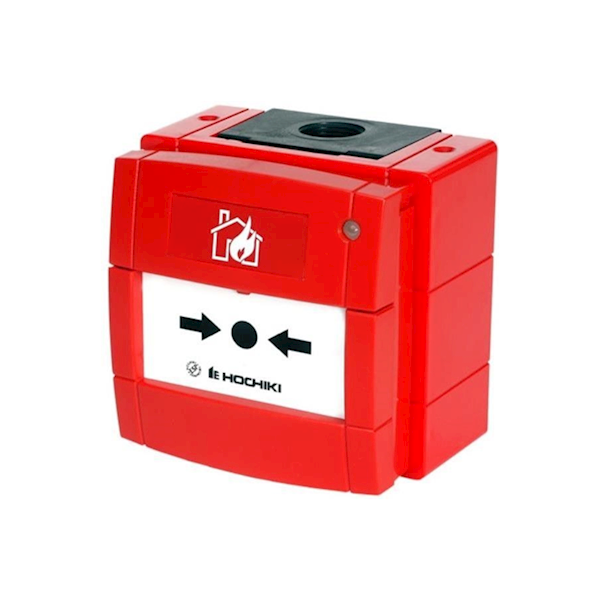

Weatherproof Addressable Call Point with SCI (Red)
Bestelcode: HCP-W(SCI)
Werkspanning: 17 – 41 VDC
Energiebesparingsmodus: 180 µA (max), 100 µA (typisch)
Ruststroom: 350 µA (max), 250 µA (typisch)
Alarmstroom: 10,0 mA (max), 5 mA (typisch)
Weerstand in positieve leiding: 100 mΩ wanneer gesloten (max), 100 kΩ wanneer open (min)
Kortsluitdrempel (typisch): 430 Ω
Transmissiemethode: Digitale communicatie met ESP
Bedrijfstemperatuurbereik: -10 °C tot +50 °C
Opslagtemperatuurbereik: -30 °C tot +70 °C
Maximale luchtvochtigheid: 95% RH - Niet-condenserend (bij 40 °C)
Inbraakbeschermingsklasse: IP67
Kleur / Behuizingsmateriaal: Rood / Gemodificeerd Polyfenyleenoxide
Gewicht / Afmetingen: 234g / B98 x H94 x D78 mm
