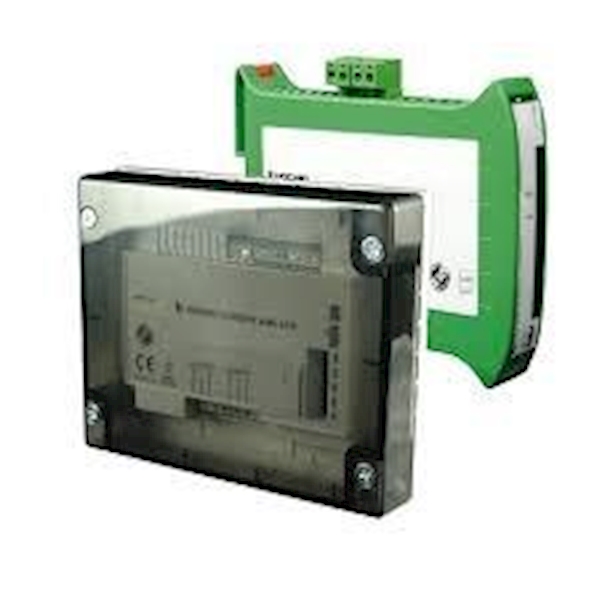

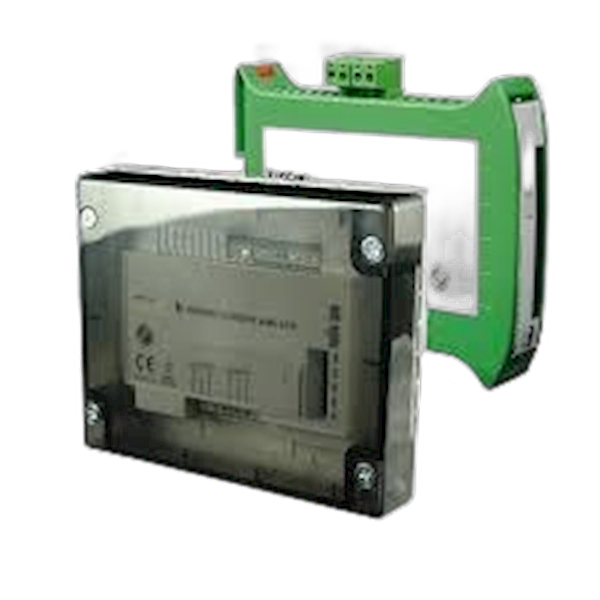

Dual Relay Controller with SCI
Specificaties van de Module
Bestelcode
CHQ-DRC2(SCI) - Module met SCI
Werkspanning
17-41 VDC
Lage stroommodus (0.75s)
170 μA
Quiescent stroom (typisch)
300 μA
Huidig verbruik (polling)
22 mA ± 20%
Stroom bij kortsluiting
8 mA
Maximale kortsluitstroom (lus)
1A
Contactwaarde relais:
30V DC max, 1A (resistieve belasting)
E.O.L. (End-of-Line) weerstand
10 kΩ, ±5%, 0.25 W
Ingangsdrempelniveau
ON=470 Ω, Kortsluiting <50 Ω, Open circuit >100 KΩ
Werktemperatuurbereik
-10°C tot +50°C
Opslag temperatuur
-30°C tot +60°C
Maximale luchtvochtigheid
95% RH - Zonder condensatie (bij 40°C)
Modulebehuizing
343 g (voeg 235gr. toe bij gebruik van CHQ-BACKBOX)
Afmetingen (Module & Deksel
L157 x B127 x D35 mm
Afmetingen (Module, Deksel + CHQ-BACKBOX)
D79 mm
