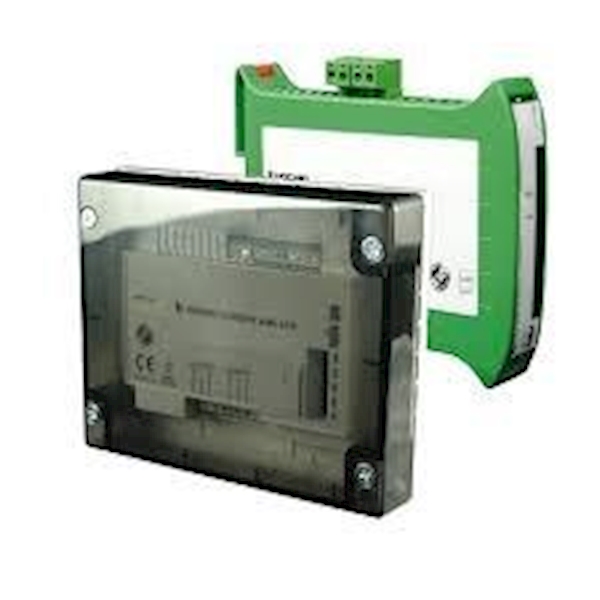

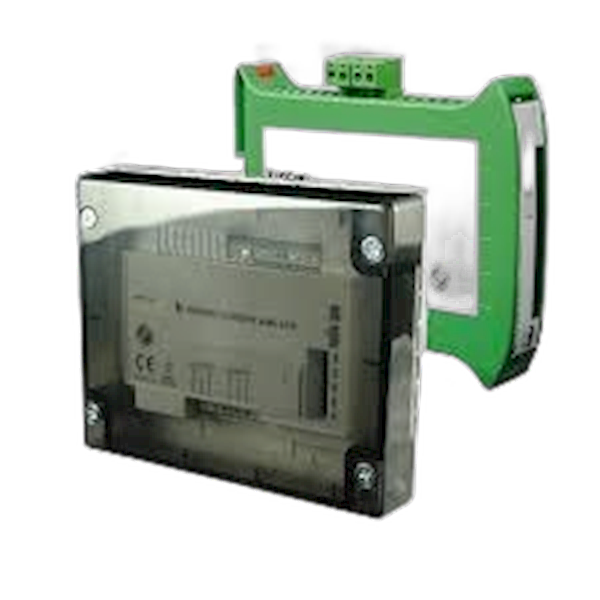

Mains Relay Controller with SCI
Specificaties
Bestelcodes
CHQ-MRC2(SCI) - Module
CHQ-MRC2/DIN(SCI) - DIN Module verdie
Werkingsspanning
17 – 41 VDC
Laagvermogenmodus (0,75s)
100 μA
Ruststroom (typisch)
300 μA
Stroomverbruik (polling)
22 mA ± 20 %
Stroom bij kortsluiting
8 mA
Maximale kortsluitingsstroom
1 A
Relaiscontactbelasting
Max. 48 VDC, 2 A (resistieve belasting)
Max. 250 VAC, 5 A (resistieve belasting)
Voor schakelen op netspanning moet het bedieningspaneel voldoen aan de Laagspanningsrichtlijn voor SELV-circuits.
Ingang EOL-weerstand
10 kΩ, ±5%, 0,25 W
Drempelwaarden
AAN=470 Ω, Kortsluiting <50 Ω, Open circuit >100 kΩ
Opslagtemperatuur
-30 °C tot +60 °C
Bedrijfstemperatuur
-10 °C tot +50 °C
Maximale luchtvochtigheid
95% RV, niet-condenserend (bij 40 °C)
Gewicht en Afmetingen
Module: 360gr. (plus 235gr met CHQ-BACKBOX)
Afmetingen Module met Deksel: L157 x H127 x D35 mm, met CHQ-BACKBOX: H79 mm
Kleur / Materiaal
CHQ Module & CHQ-BACKBOX
Wit ABS
Module Deksel
Half-doorzichtig Zwart ABS
(witte versie – CHQ-LID(WHT) ook beschikbaar)
