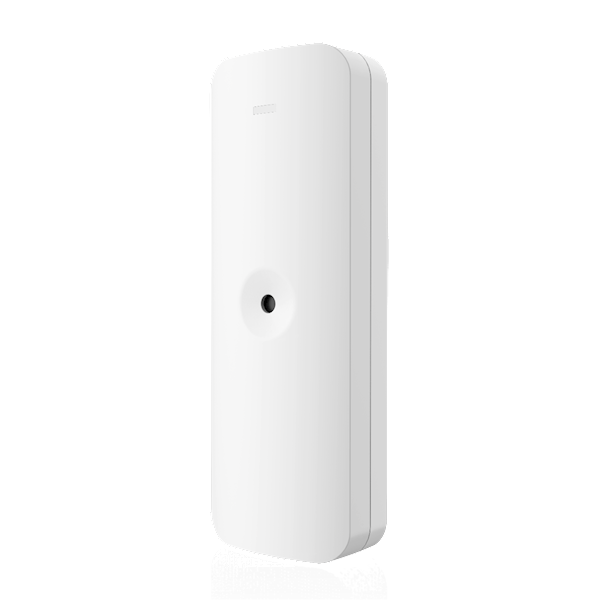

Wired Glass break Detector
Detection Performance
- Detection Method Acoustic Sensor
- Detection Range 8m
- Detection Angle 120°
- Glass Break Sensitivity Potentiometer Adjustment
- Glass Type Float;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
- Glass Thickness 2.4mm to 6.4mm
- Glass Size 0.3m x 0.3m to 3m x 3m
Feature
- Digital Processing Support
- Tamper Protection Front
Interface
- Alarm Output Normally Closed
- LED Indicator Red(High Frequency Trigger), Green(Low Frequency Trigger), Blue(Alarm)
Transmission
- Transmission Method Wired
Electrical Characteristics
- Power Supply 9-16 VDC
- Typical Voltage 12V
- Power Consumption 25mA
General
- Operation Temperature-10°C to 55°C (14°F to 131°F)
- Storage Temperature-20°C to 60°C (-4°F to 140°F)
- Operation Humidity 10% to 90%
- Dimension (WxHxD) 38.8 mm × 107 mm × 22.5 mm
- 49.5g
- Mounting Method Wall;Ceiling
- Application Scenario Indoor
