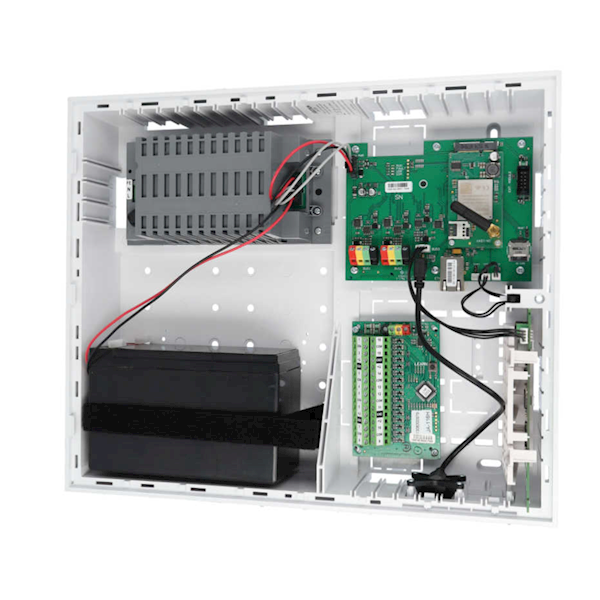

Control panel with LAN communicator and radio module
Control panel power supply
- 110 – 230 V/50 – 60 Hz, max. 0.85 A with fuse F1.6 A/250 V
Protection
Back-up battery
- 12 V; 7 to 18 Ah (lead gel)
- Maximum battery charging time 48 h
- BUS voltage (red - black) 12.0 to 13.8 V
- Maximum continuous current consumption from the control panel
- 2000 mA permanent
- 3000 mA for 60 minutes (max. 2000 mA for one BUS)
- Max. continuous current consumption for back-up 12 hours
- Without GSM communicator LAN – OFF: 1135 mA
- LAN – ON: 1107 mA
- With GSM communicator LAN – OFF: 1100 mA
- LAN – ON: 1072 mA Max. continuous current consumption for back-up 24 hours
- Without GSM communicator LAN – OFF: 535 mA
- LAN – ON: 499 mA
- With GSM communicator LAN – OFF: 530 mA
- LAN – ON: 494 mA
- Maximum number of devices 230
LAN communicator Ethernet interface
- 10/100BASE
- Dimensions 357 x 297 x 105 mm
- Weight with/without AKU 7027 g/1809 g
- Reaction to invalid code entry Alarm after 10 wrong code entries
- Event memory Approx. 7 million latest events, including date and time
- Power supply unit Type A according to EN 50131-6
- T 031 note: In case of a main power failure is the system backed up for 24
- hours and at the same time is a failure report sent to the ARC.
- GSM communicator (2G) 850 / 900 / 1800 / 1900 MHz
- Classification Security grade 2 according to EN 50131-1
- Operational environment Environmental class II (indoor general) according to EN 50131-1
