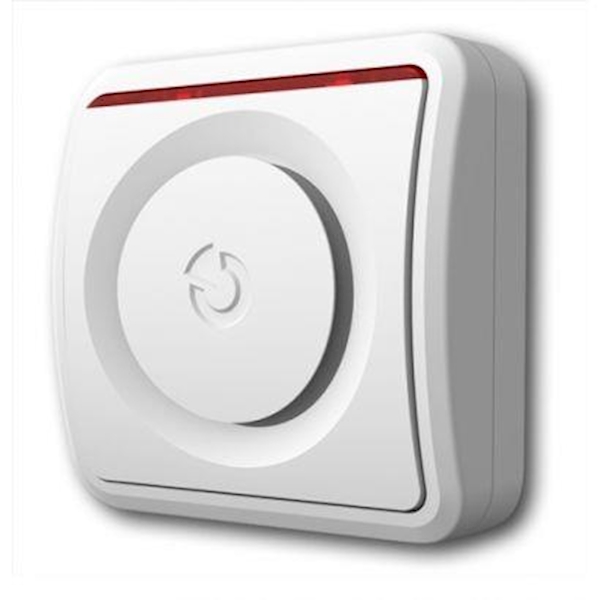

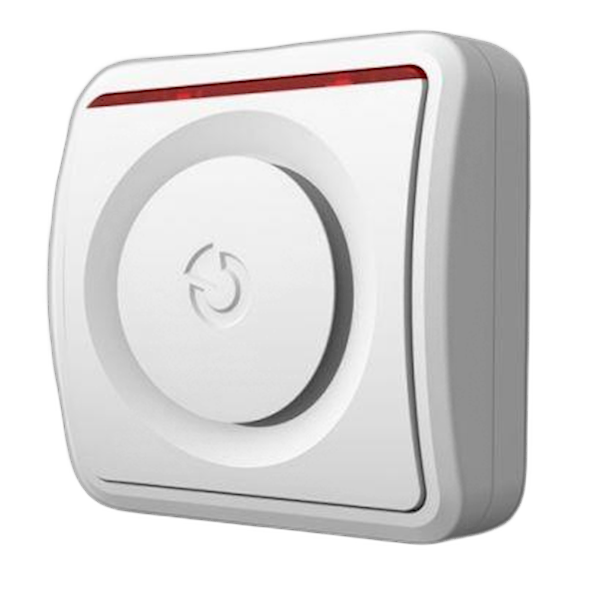

Draadloze sirene voor binnengebruik
Technical specifications
Power supply/wattage 110 - 230 V/50 -60 Hz, 0.6 W, protection class II
Connecting cables - maximum diameter 1.5 mm2
Backup / recharge time min. 24 h/max 72 h

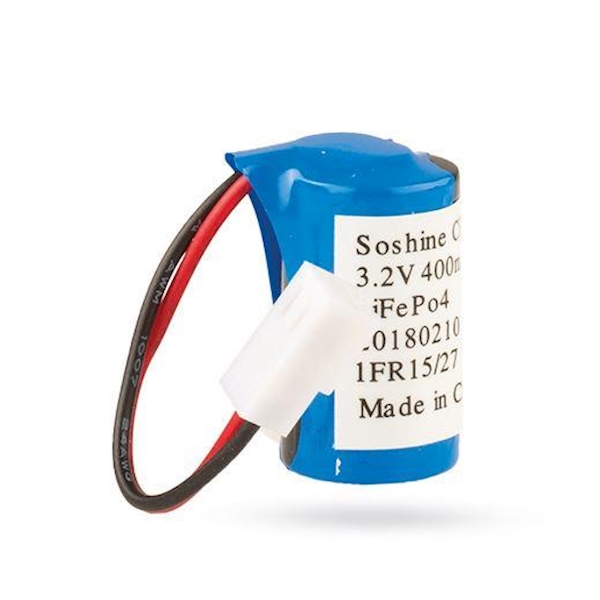

Battery type BAT-3V2-CR2/LiFePo4
Warning: Battery is not installed
Battery / lifetime 3.2 V; 470 mAh/3 years
-- minimum voltage when loaded 3.0 V
-- maximum voltage when unloaded 3.6 V
Communication band 868.1 MHz, JABLOTRON protocol
Communication range approx. 300 m (open area)
Classification security grade 2/environmental class II
-- According to EN 50131-1
-- Alarm sound level 100 dB/1 m (±5 dB/1 m)
-- Back up power supply type W/24h back up
-- Operational environment indoor general
-- Operating temperature range -10 °C to +40 °C
-- Average operational humidity 75 % RH, non-condensing
-- Certification body Trezor Test s.r.o. (no. 3025)
IP rating IP43 according to EN 50131-1
Dimensions 80 x 80 x 35 mm
Also complies with ETSI EN 300 220, EN 50130-4+A1:2014,
EN 55032:2015, EN 62368-1, EN 50131-5-3,
EN 50581:2012, EN 50131-4, EN 50131-6
Can be operated according to ERC REC 70-03
