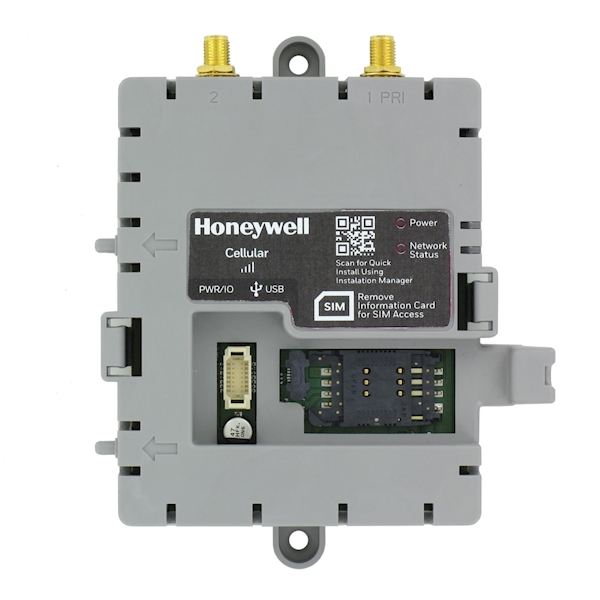

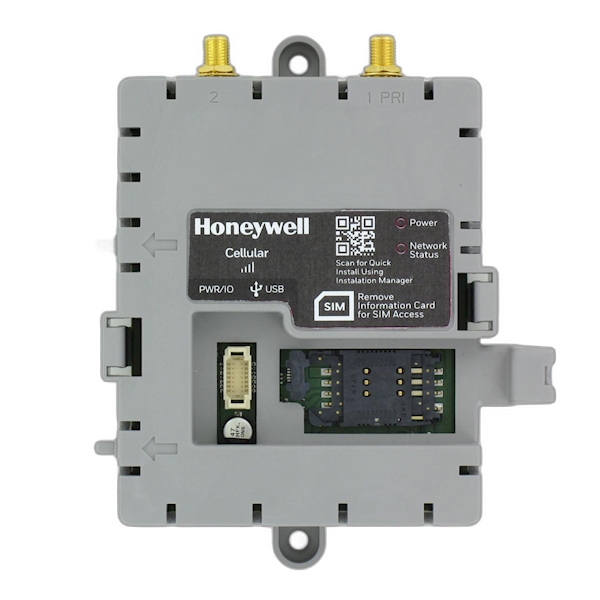

MAXPRO Intrusion 4G/LTE module
LTE MODULE
- Input voltage 14 VDC nominal (13.85–14.5 VDC)
- Current, idle 45 mA
- Current, max. (transmitting) 240 mA
- Frequency bands
- LTE Category 1 2G GSM
- LTE Bands: 1, 3, 8, 20, 28
- 2G GSM Bands: GSM 900 and DCS 1800
SIM Card
- 2FF mini-SIM
- SIM card not included; please purchase and activate a SIM card from your preferred provider.
ANTENNAS (X 2)
- Type Wideband, Dipole 4G LTE
- Frequencies 698–960 MHz, 1575.42 MHz, 1710–2700 MHz
- Polarization Linear
- Peak gain 3 dBi
- VSWR < 2:1
- Impedance 50 Ohms
- Connector type SMA-M, Hinged
ENVIRONMENTAL
- Operating temperature -10 to +50 °C / Indoor use only
- Humidity Max. 93% RH non-condensing
PHYSICAL
- Dimensions (W x H x D)
- LTE module: 97.6 mm x 108 mm x 25.4 mm
- Each antenna: 168.4 mm x 49 mm
- As shipped: 24.5 cm x 16.5 cm x 8 cm
Weight
- LTE module: 97 g
- As shipped: 393 g
- Each antenna: 45.3 g
