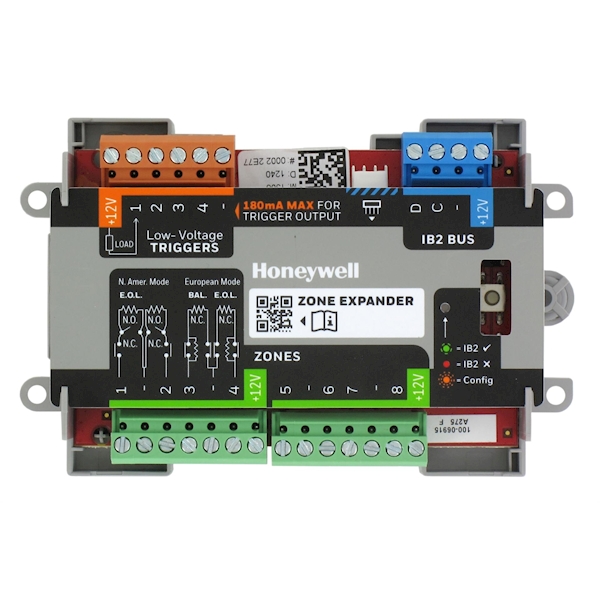

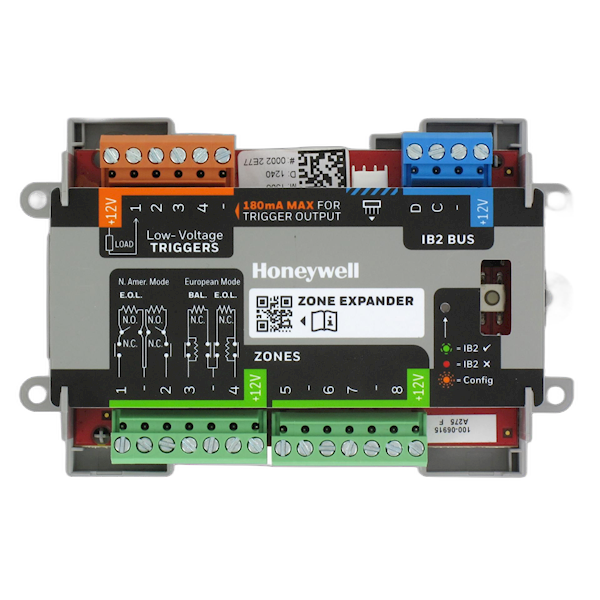

MAXPRO Intrusion Zone Expander Module, 8 hardwired zones
BOARD POWER
- Input voltage 13.8 VDC nominal (10–14.5 VDC)
- Current, idle 35 mA
- Current, max. 60 mA (all zones active)
ZONES (INPUTS) (X 8)
- Voltage 3.3 VDC
- Resistance tolerance 1 % max.
TRIGGER OUTPUTS (X 4)
- Trigger output voltage 13.7 VDC (0 VDC with switched)
- Max. current (per output) 180 mA
ENVIRONMENTAL
- Operating temperature -10 to +50 °C / Indoor use only
- Humidity Max. 93% RH non-condensing
- Ingress and impact protection EN 60529:1992+A2:2013: IP42 / EN 62262:2002: IK06
PHYSICAL
- Dimensions (W x H x D) With enclosure: 14.6 cm x 14.6 cm x 3.4 cm
- As shipped: 17.5 cm x 15.5 cm x 4.0 cm
- Weight With enclosure: 263 g
- As shipped: 341 g
OTHER
- Ancillary Control Equipment
- (ACE) Type B
