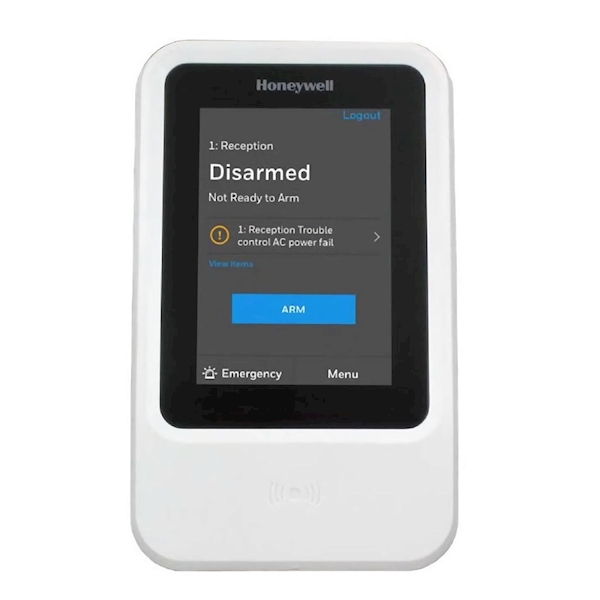

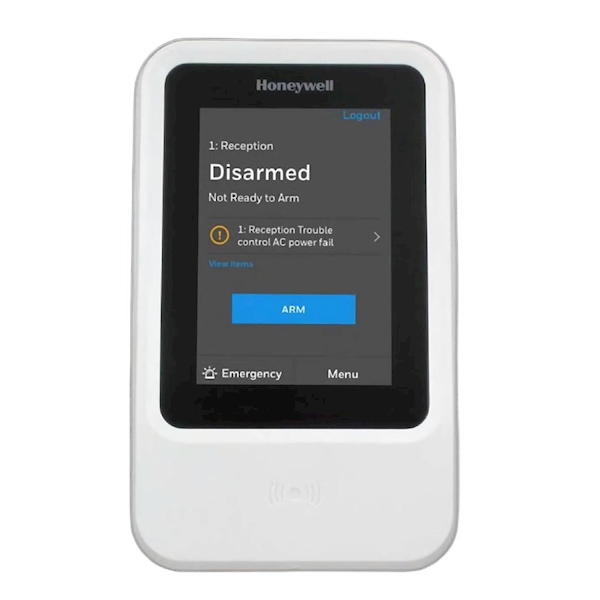

MAXPRO Intrusion Touchscreen Keypad Mifare
ELECTRICAL
- Input voltage 13.8 VDC nominal (10–14.5 VDC)
- Current, idle MPIKTSMF: 100 mA / MPIKTSPRX: 75 mA
- Current, max. MPIKTSMF: 130 mA / MPIKTSPRX: 110 mA (display and buzzer on)
- Sounder Full Power, -3 dB, -6 dB, and -9 dB (85 dB at 10 cm)
CARD SUPPORT
- IPIKTSMF card types Mifare (Classic 32-bit and Desfire 56-bit); reading CSN only
- EM4102 ASK 125 kHz; up to 40-bit
- MPIKTSPRX card types EM4102 ASK 125 kHz; up to 40-bit
ENVIRONMENTAL
- Operating temperature -10 to +50 °C / Indoor use only
- Humidity Max. 93% RH non-condensing
- Ingress and impact protection EN 60529:1992+A2:2013: IP42
- EN 62262:2002: IK06
PHYSICAL
- Dimensions (W x H x D) 8.45 cm x 13.96 cm x 4.01 cm
- As shipped: 9.3 cm x 16.7 cm x 5 cm
- Weight 169 g
- As shipped: 244 g
OTHER
- Ancillary Control Equipment
- (ACE) Type B
- OPTIONS MPIKW1: MAXPRO Intrusion Keypad Wall Mounting Plate
