Technische specificaties (Engels):

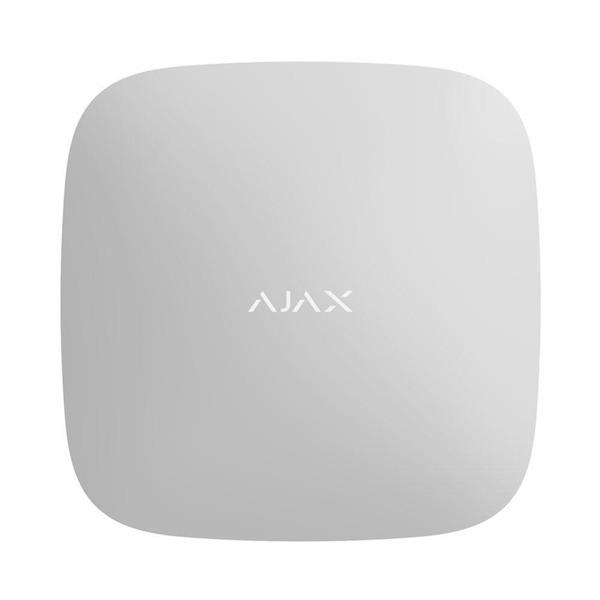

Classification :: The radio channel central unit with GSM and Ethernet modules
Installation :: Indoors
Connected devices :: 100
Users :: 50
Rooms :: 50
Groups :: 9
Mobile Apps :: iOS 13.0 and later, Android 5.0 and later
Communication channels :: Ethernet, GSM (850/900/1800/1900 MHz)
Alarm signal :: Delivery time: 0.15s (types of notifications: SMS message, call, push)
Communication with Central Monitoring Station :: Contact ID, SIA
Processor :: ARM
Operating system :: OS Malevich
Learn more about firmware updates
Power supply :: 110-250 V from mains
Built-in back-up battery: Li-Ion 2 ?·h :: Up to 15 hours of offline operation when the Ethernet is switched off
Energy consumption from the grid — 10 W
Jeweller radio technology :: Communication range with detectors up to 2,000 m in an open space two-way communication between devices
Radio frequency bands :: 866.0 – 866.5 MHz, 868.0 – 868.6 MHz, 868.7 – 869.2 MHz, 905.0 – 926.5 MHz, 915.85 – 926.5 MHz, 921.0 – 922.0 MHz (depends on the region of sale)
Self-adjusting RF output power :: up to 20 mW
Block encryption :: based on AES algorithm
Detector polling period :: 12−300s
Learn more about Jeweller
SIM card support :: Micro SIM 2G
Operating temperature range :: From -10°? to +40°?
Anti-sabotage :: Protection against fraud, Jamming detection, Tamper-resistant
Video surveillance :: Up to 10 cameras or DVRs
Learn more about CCTV and Ajax Systems
Remote set up :: +
Dimensions :: 163 × 163 × 36 mm
Weight :: 350 g
Warranty :: Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
Connected ReX :: 1
Connected sirens :: up to 10
Scenarios :: 5
Learn more about scenarios
MotionCam detectors support :: No
