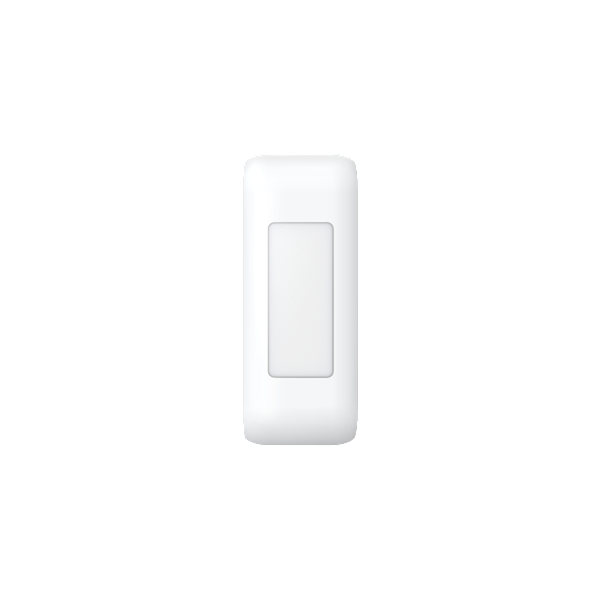

Wired Internal Nano curtain Detector
Detection Performance
- Detection MethodPassive Infrared
- Detection Range5m
- Detection Angle5°
- Detection Zones28
- Detectable Speed0.3~2m/s
- SensitivityAuto
- White Light Filter6500lux
- Digital Temperature CompensationSupport
- Creep Zone ProtectionSupport
Feature
- Digital ProcessingSupport
- Tamper ProtectionFront
- Directional DetectionSupport
Interface
- Alarm OutputNormally Closed
- LED IndicatorBlue(Alarm)
Transmission
- Electrical Characteristics
- Power Consumption15mA Max
- Power Supply9 to 16 VDC
- Typical Voltage12 VDC
General
- Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity10% to 90%
- Dimension(WxHxD)29.7mm × 78.1mm × 24.8mm
- 31.5g
- Mounting Height2.4 to 4m
- Mounting MethodCeiling
- Application ScenarioIndoor
