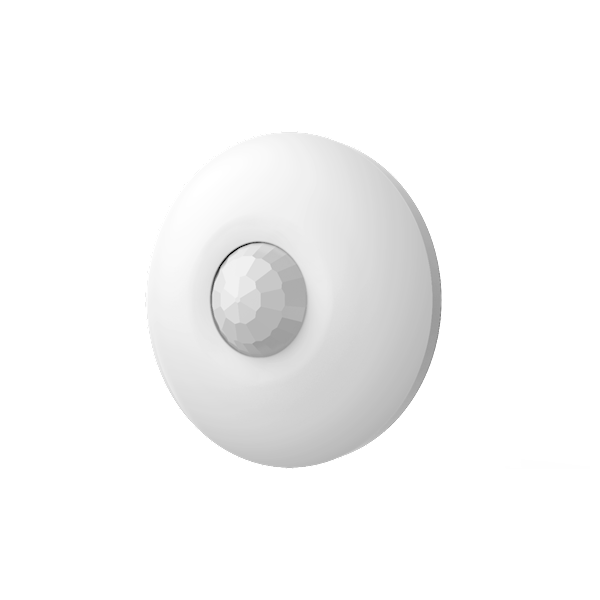

Wired PIR Ceiling Detector
Detection Performance
- Detection MethodPassive Infrared
- Detectiebereik12m
- Detection Angle360°
- Detection Zones172
- Detectable Speed0.3~2m/s
- SensitivityAuto;Low
- White Light Filter6500lux
- Digital Temperature CompensationSupport
- Creep Zone ProtectionSupport
Feature
- Digital ProcessingSupport
- Sealed OpticsSupport
- Tamper ProtectionFront;Rear
- Environment Temperature IndicatorSupport
- Signal Strength IndicatorSupport
Interface
- Power SwitchPower Up Enrolling
- LED IndicatorBlue(Alarm)
Transmission
- Transmission TechnologyTri-X Wireless
- Transmission MethodTwo-Way RF Wireless
- Transmissiefrequentie868MHz
- Transmission SecurityAES-128 Encryption
- Transmission Range(Free Space)1.6Km
- Frequency HoppingSupport
- Enrolling MethodPower up;Remote ID;QR Code
Electrical Characteristics
- Standard Battery Life5 years in work status (being triggered 20 times per day)
- StroomvoorzieningBattery Powered
- Batterij TypeCR123A × 1
- Typical Voltage3V
General
- Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity10% to 90%
- Dimension(WxHxD)φ101.2 mm x 32.9 mm
- 109.5g
- Mounting Height2.4 to 4m
- Mounting MethodCeiling
- ToepassingsscenarioIndoor
