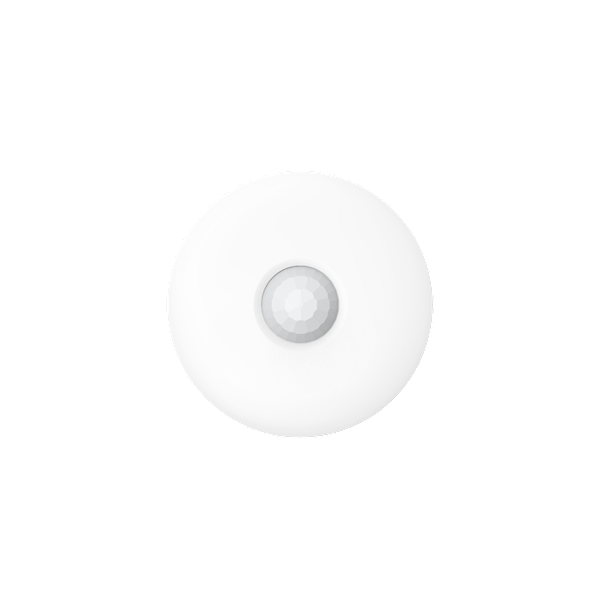

Wired Internal DT Detector
Detection Performance
- Detection MethodPassive Infrared;Microwave
- Detection Range12m
- Detection Angle360°
- Detection Zones172
- Detectable Speed0.3~2m/s
- SensitivityAuto;Low
- White Light Filter6500lux
- Microwave Frequency24GHz(24.15~24.25GHz)
- Digital Temperature CompensationSupport
- Creep Zone ProtectionSupport
Feature
- Digital ProcessingSupport
- Sealed OpticsSupport
- Tamper ProtectionFront
Interface
- LED IndicatorGreen(PIR), Red(Microwave), Blue(Alarm)
Electrical characteristics
- Power consumption100mA Max
Electrical Characteristics
- Power Supply9 to 16 VDC
- Typical Voltage12 VDC
General
- Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity10% to 90%
- Dimension(WxHxD)φ120 mm x 33.2 mm
- 138g
- Mounting Height2.4 to 4m
- Mounting MethodCeiling
- Application ScenarioIndoor
