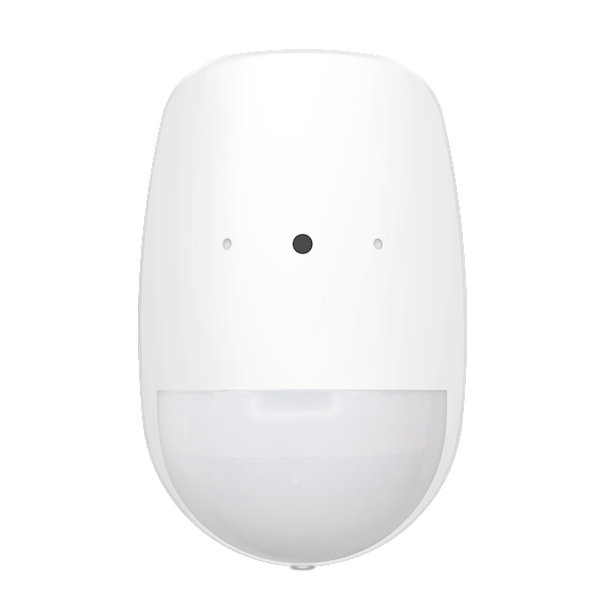

Wired PIR-Glass Break Detector
Detection Performance
- Detection Method Passive Infrared;Acoustic Sensor
- Detectiebereik 12m
- Detection Angle 85.9°
- Detection Zones 52
- Detectable Speed 0.3~2m/s
- Huisdier Immuniteit 30Kg
- PIR Sensitivity Auto,Pet
- White Light Filter 6500lux
- Glass Break Range 8m
- Glass Type Float;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
- Glass Break Sensitivity Potentiometer Adjustment
- Glass Thickness 2.4mm to 6.4mm
- Digital Temperature Compensation Support
- Glass Size 0.3m x 0.3m to 3m x 3m
- Creep Zone Protection Support
Feature
- Digital Processing Support
- Sealed Optics Support
- Tamper Protection Front
Interface
- Alarm Output Normally Closed
- LED Indicator Green(PIR),Red(BG),Blue(alarm)
Transmission
- Transmission Method Wired
Electrical Characteristics
- Power Consumption 36mA Max
- Stroomvoorziening 9 to 16 VDC
- Typical Voltage 12 VDC
General
- Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity10% to 90%
- Dimension(WxHxD) 65.5mm× 103mm× 48.5mm
- 98.5g
- Mounting Height 1.8 to 2.4m
- Mounting Method Wall
