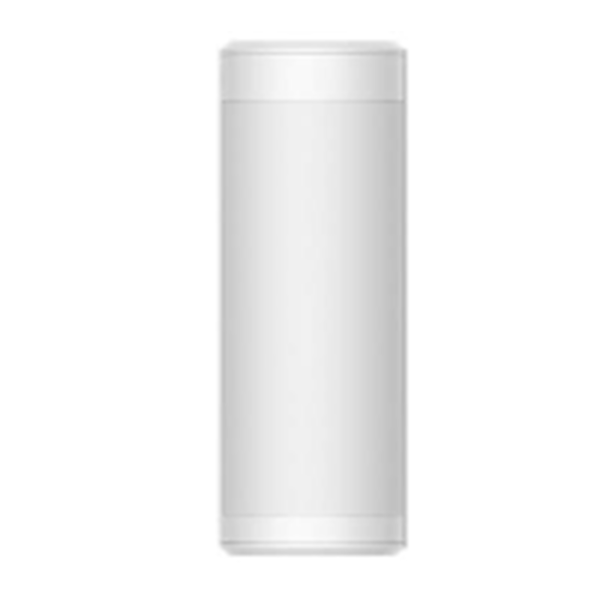

Wired External tri-tech sensor
Detection Performance
- Detection MethodPassive Infrared;Microwave
- Detection Range15m
- Detection Angle90° @ 180° adjustable
- Detection Zones92
- Detectable Speed0.3~2m/s
- SensitivityAuto;Low
- White Light Filter10000lux
- Microwave Frequency24GHz(24.15~24.25GHz)
- Pet Immunity40Kg
- Digital Temperature CompensationSupport
- Anti-maskingSupport
- Adaptable Coverage
Support
Pattern mask included
Feature
- Digital ProcessingTri-Signal Logic
- Sealed OpticsSupport
- Tamper ProtectionFront;Rear
- Anti-Sway AnalyticsSupport
Interface
- Alarm OutputNormally Closed
- LED IndicatorGreen(Top PIR), Red(Microwave), Orange(Bottom PIR)Green+Orange(Mask), Blue(Alarm)
Transmission
Electrical Characteristics
General
- Operation Temperature-25 °C to 60 °C (-13 °F to 140 °F)
- Storage Temperature-25 °C to 60 °C (-13 °F to 140 °F)
- Operation Humidity10% to 90%
- IP RateIP65
- Dimension(WxHxD)75mm × 202mm × 73mm
- 350g
- Mounting Height0.8 to 1.2m
- Mounting MethodWall
- Application ScenarioOutdoor
